6m Tall Doors: What’s Possible with Modern Sliding Glass Systems?

Large format glazing has become a defining feature of contemporary architecture. Double height openings, uninterrupted glass elevations and increasingly ambitious relationships between buildings and their surroundings are leading architects to explore sliding doors well beyond conventional dimensions.

Among the most technically demanding requests are 6m tall doors. Glazing at this scale is achievable, but the solution cannot be selected by height alone. The sliding system, pane area, glass weight, wind exposure, structural support and installation strategy must all be assessed together.

This guide explains how modern 6m tall sliding doors can be achieved, which minimal windows® systems are suitable and what architects need to consider during specification.

Can sliding glass doors reach 6m tall?

Yes. Sliding glass doors can reach 6m in height when a system designed for this scale is specified and the project conditions support the proposed dimensions.

The minimal windows® NGS range can accommodate individual sliding panels up to 6m high, 18m² in area and 1,500kg in weight. It therefore provides a defined product solution for architects seeking systems capable of reaching 6m.

Other minimal windows® systems have also been used for exceptionally tall installations through project-specific engineering. However, their standard tested limits are lower:

• The original minimal windows® system has been tested to a maximum height of 4m and a maximum moving pane area of 8.5m².

• The minimal windows® 4+ system has been tested to a maximum height of 4.5m and a maximum moving pane area of 12m².

• The minimal windows® NGS range can accommodate sliding panels up to 6m high, 18m² and 1,500kg.

These figures demonstrate why there is no single maximum dimension that can be applied across every minimal windows® product. The required height must be considered alongside the system, pane proportions and performance requirements.

Our guide to sliding glass door sizes provides further information about the dimensions available across the product range.

Which minimal windows® system is suitable for 6m tall doors?

minimal windows® NGS

The minimal windows® NGS was developed for exceptionally large sliding glass units. Individual panels can reach 6m high, cover an area of up to 18m² and weigh up to 1,500kg.

The system retains the minimal appearance associated with the wider product range, despite the increased glass dimensions and structural demands. Its floor-to-ceiling design allows the outer frame to be concealed within the surrounding building finishes, leaving the vertical interlocks as the principal visible framing elements.

NGS can accommodate insulated glass units between 34mm and 74mm thick, allowing the glass specification to be developed around the thermal, acoustic, solar-control and structural requirements of the project.

minimal windows® 4+

The minimal windows® 4+ system accommodates triple glazing and moving panes up to 12m², with a standard tested maximum height of 4.5m.

It has also been adapted for selected projects requiring greater heights. Portland Road in Notting Hill includes a minimal windows® 4+ installation measuring 5,770mm high. This was not a standard catalogue application. It required project-specific engineering to account for the height, slender panel proportions, wind loading and operational requirements.

The original minimal windows® system

The original minimal windows® sliding door has a maximum tested height of 4m and a moving pane area of up to 8.5m².

It remains appropriate for many large format and double height applications, but a different system or project-specific engineering assessment may be required where the proposed door exceeds its standard tested dimensions.

Depending on the architectural requirements, minimal windows® systems can also be developed as linear, pocket or open corner sliding doors. The chosen configuration affects the number of tracks, panel weights, structural support and drainage requirements.

What determines the maximum sliding door size?

Maximum sliding door sizes are controlled by more than the manufacturing capacity of the frame.

The principal considerations include:

Pane area and proportions

A 6m-high pane may still fall within the maximum permitted area, but unusually narrow or wide proportions can affect the way the glass and frame behave.

Tall, narrow panels can place additional demands on the rollers and interlocks. Wide panels introduce different considerations around glass deflection, transportation and structural support. The complete geometry of the pane must therefore be assessed.

Glass weight

The weight of an individual unit depends on its width, height and glass build-up. Double glazing, triple glazing, laminated panes and thicker structural glass will all produce different panel weights.

The minimal windows® NGS range can accommodate units weighing up to 1,500kg. At the upper end of this capacity, automated operation may be preferable or necessary to ensure controlled and reliable movement.

Wind loading and exposure

Wind pressure increases the structural demands placed on large glass surfaces. A sheltered urban project may permit a different pane size and glass specification from a coastal or exposed rural site.

Wind-load calculations are therefore required to assess glass thickness, interlock reinforcement, deflection and the support provided by the surrounding structure.

This is one reason why bespoke installations beyond standard tested sizes must be assessed individually rather than treated as a universal product option.

The supporting structure

Large sliding doors depend on a stable and accurately constructed opening. Excessive movement or deflection in the structure above the system could affect the alignment and operation of the doors.

The head, jamb and base details must be coordinated with the structural engineer from an early stage. Required tolerances, predicted building movement, drainage and fixing positions should all be established before construction reaches the glazing opening.

Transportation and installation

The ability to manufacture a large pane does not automatically mean it can be delivered to every site.

Road access, lifting equipment, crane positions, temporary storage and the route between the delivery vehicle and the opening must all be considered. On constrained sites, transportation and lifting can establish the practical limit before the sliding system itself does.

Installation sequencing should therefore form part of the design process rather than being addressed after the structural opening has been completed.

Can 6m tall doors provide a flush threshold?

A flush threshold can be achieved, but the base detail must be designed as part of the complete building envelope.

The threshold needs to provide:

• Continuous structural support beneath the sliding system

• Integrated water management

• Access to the rails and moving components

• Coordination with internal and external finished floor levels

• Appropriate thermal continuity

• Safe, level access through the opening

The minimal windows® NGS Floor system allows the base framing to be concealed beneath the surrounding floor finishes while retaining the access needed for operation and maintenance.

This is particularly important for external doors in the UK, where drainage and long-term reliability must be considered alongside the appearance of the threshold.

Do 6m tall sliding doors need automation?

Not every oversized sliding door requires automation. The decision depends on the panel weight, configuration, required opening speed, frequency of use and accessibility requirements.

Automation becomes increasingly valuable where individual panels approach the upper weight capacity of the system. Concealed drives can move the glazing in a controlled manner without introducing visible motors into the finished elevation.

The minimal windows® showroom at Sky House includes moving glazing approximately 6.5m high and weighing around 1.4 tonnes. At this scale, automation provides controlled operation that would not be practical manually.

Automated sliding glass doors may be operated through a wall-mounted control, dead man switch or compatible building-management or home-automation system. Safety controls, emergency operation and access for future maintenance must all be considered during specification.

Can 6m tall doors meet demanding thermal standards?

Large format glazing does not automatically prevent a project from achieving strong thermal performance. The final result depends on the selected system, insulated glass unit, framing, coatings, installation and proportion of glass to frame.

Available specifications can include:

• Double or triple glazing

• Low-emissivity coatings

• Solar-control coatings

• Laminated glass

• Acoustic glass

• Argon-filled insulated units

• Thermally broken aluminium framing

The Hellidon Passivhaus project demonstrates how large minimal windows® 4+ sliding doors can be integrated into a certified Passivhaus envelope.

The project required close coordination of the triple glazing, airtightness, thermal continuity and threshold details, with the completed doors achieving a project Uw value of 0.95 W/m²K.

Hellidon is not an example of a 6m-high door. It is relevant because it demonstrates that architectural scale and demanding building-performance targets can be addressed together when the glazing is considered from the earliest design stages.

Completed examples of exceptionally tall glazing

Portland Road

Portland Road is the principal built example of a horizontal sliding door approaching 6m.

The minimal windows® 4+ installation reaches 5,770mm high and sits beside a double height internal void within a refurbished Notting Hill townhouse. Its exceptional height exceeded the standard 4.5m tested limit of the system and required a project-specific solution.

The relatively sheltered London location was an important factor in determining that the increased height could be engineered successfully.

Sky House showroom

The minimal windows® showroom at Sky House allows architects and clients to experience moving glazing at this scale before specifying it.

The showroom includes a 6.5m-high automated vertical sash window and sliding pane installation. A newer minimal windows® NGS display also demonstrates concealed framing, hidden handle technology and automated operation at an architectural scale.

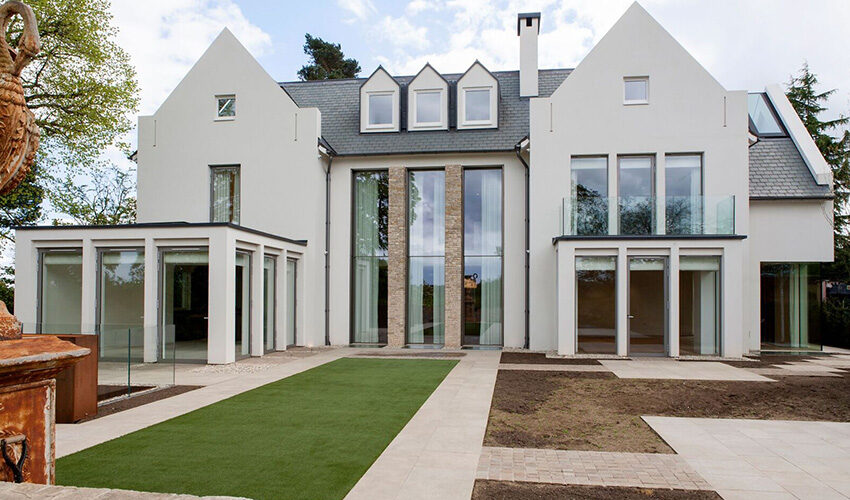

Camlet Way

Camlet Way includes three automated vertical sash installations measuring approximately 6.1m high.

These are not conventional horizontal sliding doors. They use minimal windows® profiles in a vertically moving configuration, creating large openings at the base of the double height glazing. The project demonstrates how specialist moving glass can provide access and ventilation within an exceptionally tall elevation.

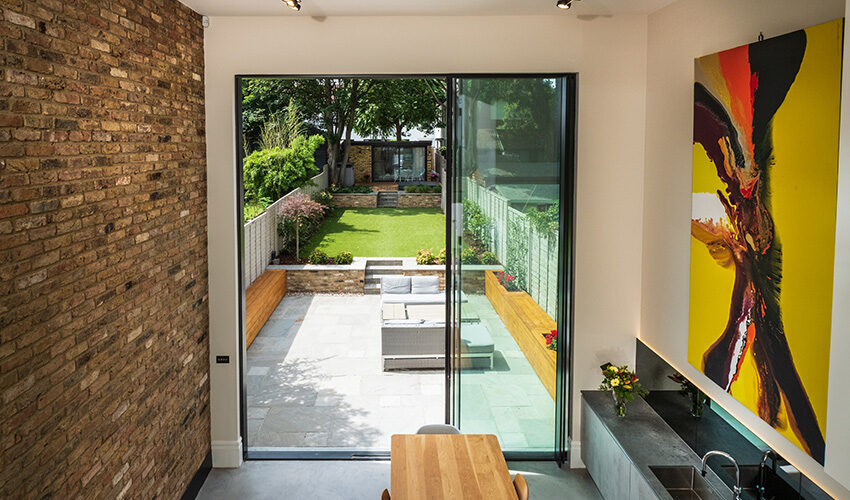

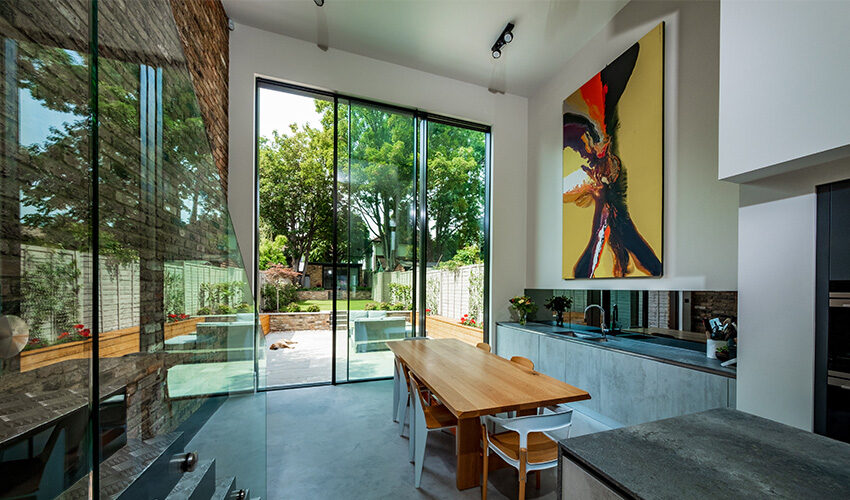

Kingston Road

Kingston Road uses a three-track, three-panel sliding door measuring approximately 4.6m high and 3.8m wide.

The system was adapted beyond its standard tested height using reinforced interlocks and an integrated drainage detail. Although smaller than the Portland Road installation, it provides another useful example of double height glazing engineered around a two-storey residential space.

Are 6m tall doors right for every project?

Not necessarily.

A 6m-high door should respond to a genuine architectural requirement rather than being specified solely for scale. It is most appropriate where the building contains a double height volume, an important uninterrupted view or an elevation that would be compromised by introducing horizontal framing.

In some projects, a combination of a shorter moving door and fixed glazing above can achieve a similar visual effect with simpler operation, transportation and structural requirements.

The choice should be based on:

• The intended opening and circulation

• The proportions of the elevation

• The level of exposure

• The required thermal and acoustic performance

• The available structure

• Site access

• The project budget

• Long-term operation and maintenance

The wider range of oversized sliding glass doors should be considered before fixing the final dimensions.

How should architects specify 6m tall doors?

The most successful projects begin with early coordination between the architect, structural engineer, glazing specialist and main contractor.

The initial assessment should establish:

1. The required clear opening and panel configuration.

2. Whether the height must be achieved by a single moving pane.

3. The appropriate minimal windows® system.

4. The anticipated glass build-up and panel weight.

5. Site-specific wind loading.

6. Structural deflection and support requirements.

7. Manual or automated operation.

8. Threshold, drainage and waterproofing details.

9. Delivery, lifting and installation access.

10. Required thermal, acoustic and solar performance.

These decisions should be made before the structural opening, surrounding finishes and external landscaping are fixed.

For projects where a 6m sliding pane is required, explore the dedicated 6m tall sliding doors page for available systems, configurations and specification information.

Discuss 6m tall doors with the minimal windows® team

6m tall doors require specialist engineering, accurate structural coordination and a sliding system selected for the proposed pane dimensions.

The minimal windows® technical team can assess system capability, panel size, wind exposure, glazing specifications, automation and installation requirements during the early design stages.

Contact minimal windows® to discuss the engineering considerations for tall glazing or arrange a visit to the showroom to experience automated moving glass at more than 6m high.
