Flush Threshold Doors with Timber Decking

Flush Threshold Doors with Timber Decking

Timber flooring and external decking can create a warm and natural connection between the interior of a home and the surrounding landscape. When internal timber finishes are continued towards large areas of glazing and complemented by external decking, the visual boundary between inside and outside can become significantly less defined.

This effect is particularly effective when combined with a flush threshold sliding door.

A flush threshold allows the sliding door frame to be integrated into the floor construction, creating a level transition between the internal floor finish and external decking. When carefully detailed, the timber flooring, sliding door and external deck can work together to create a continuous connection between internal and external living spaces.

For contemporary homes designed around gardens, coastal views, woodland or surrounding landscapes, this detail can help make the architecture feel more connected to its environment.

What Is a Flush Threshold Door with Timber Decking?

A flush threshold door is designed to minimise the change in floor level between the internal and external spaces.

With a sliding glass door, the base frame is integrated into the floor construction so that the threshold does not create a significant step between the internal and external finishes.

When timber flooring is used internally and decking is installed externally, both finishes can be designed to meet the sliding door threshold at a similar level.

This can create a continuous visual line from the interior of the property, through the glazing and onto the external deck.

The internal and external materials do not necessarily need to be identical. In many projects, architects use complementary timber tones, colours and textures to create continuity while selecting materials appropriate for their individual environments.

The key architectural consideration is the relationship between:

• The internal finished floor level
• The sliding door base frame
• The external decking level
• The drainage detail
• The structural build-up beneath both finishes

These elements need to be coordinated during the design process to achieve a clean and level transition.

Why Are Flush Thresholds Effective with Timber Decking?

Timber has a naturally warm and tactile quality that can make internal and external spaces feel more closely connected.

When an internal timber floor meets external decking at a flush threshold, the eye can follow the material towards the glazing and landscape without being interrupted by a large visible door frame or step.

This can be particularly effective with slim sliding doors, where minimal visible framing allows the flooring and surrounding architecture to remain a prominent part of the design.

A flush threshold can help create:

• A stronger visual connection between internal flooring and external decking
• A smoother transition between living spaces and terraces
• Improved continuity when sliding doors are open
• A cleaner architectural detail at the base of the glazing
• Step-free access between internal and external areas
• A more seamless relationship between architecture and landscape

When the doors are open, the transition between the interior and deck can feel almost completely uninterrupted.

Even when the sliding doors are closed, a carefully detailed flush threshold can help maintain the visual relationship between the internal floor and external terrace.

How Do Timber Floors and Decking Meet a Flush Threshold?

The detail between timber flooring, external decking and a sliding door needs to be considered as part of the overall floor construction.

The base frame of the sliding door must be positioned at the correct level within the structure, allowing the internal and external finishes to meet the threshold appropriately.

Internally, the floor finish may sit above the structural floor build-up. Externally, the decking structure must be designed to achieve the required finished level while allowing space for drainage and ventilation beneath the deck.

The exact detail will depend on the individual project, but coordination is typically required between:

• The architect
• The structural engineer
• The builder
• The decking contractor
• The architectural glazing specialist

Planning the threshold detail early helps ensure that the required space is available for the sliding door base, floor construction and drainage.

For more information about the different base configurations available, explore our threshold options for minimal windows® sliding doors.

Internal Timber Flooring and External Decking

One of the most effective approaches is to create a visual relationship between the internal timber flooring and the external decking.

This does not necessarily mean using exactly the same material inside and outside.

Internal flooring and external decking are exposed to very different conditions. Timber flooring inside the home may be selected primarily for its appearance and comfort, while external decking needs to perform in changing weather conditions.

Instead, architects may choose materials with:

• Similar tones
• Complementary colours
• Matching board directions
• Similar textures
• Consistent proportions

Aligning the direction of internal timber boards with the external decking can also strengthen the visual connection.

When the boards appear to continue towards the glazing and across the threshold, the transition between the two spaces can feel more deliberate and integrated into the overall architectural design.

Can Timber Decking Meet the Sliding Door Frame Directly?

The appearance of the finished detail can make it look as though the decking runs directly into the sliding door frame.

However, the construction beneath the finished surface still needs to accommodate the sliding door base and drainage requirements.

The precise spacing between the decking and frame will depend on the individual design and construction detail.

Considerations may include:

• Timber expansion and movement
• Drainage requirements
• Ventilation around the decking structure
• Access for maintenance
• The position of the sliding door frame
• The finished floor levels

The goal is to achieve a clean visual transition without compromising the long-term performance of the decking or glazing system.

Designing Flush Thresholds for Outdoor Living Spaces

Timber decking is often used to create external living spaces directly outside large sliding doors.

Terraces, balconies and raised decks can all benefit from a level threshold detail that makes movement between internal and external spaces feel more natural.

This can be particularly effective for:

• Contemporary new-build homes
• Coastal properties
• Woodland homes
• Lakeside properties
• Garden extensions
• Properties with raised terraces
• Homes designed around significant views
• Open-plan living spaces

Where large sliding doors open directly onto a deck, the threshold can become one of the most frequently used areas of the property.

A carefully designed flush detail can therefore contribute to both the architectural appearance and everyday usability of the space.

How Do minimal windows® Systems Create a Flush Threshold?

The minimal windows® range has been designed around flush threshold details that allow the base of the sliding door system to be integrated into the floor construction.

The base frame sits below the finished floor level, allowing the surrounding floor finishes to meet the glazing with minimal visible framing at the base.

The sliding panels are recessed within the base frame, while drainage is incorporated into the threshold design to manage water around the base of the system.

Different base and threshold options are available depending on the architectural and practical requirements of the project.

The most appropriate option will depend on factors such as the door configuration, number of sliding tracks, intended use of the threshold and overall floor construction.

When Should the Flush Threshold and Decking Detail Be Designed?

The threshold detail should ideally be considered early in the design process.

The sliding door system, internal floor construction and external decking all need to work together.

Leaving these decisions until later in the construction process can make it more difficult to achieve the desired finished levels and drainage requirements.

Early planning allows the project team to establish:

• The internal finished floor level
• The external decking level
• The position of the sliding door base
• The depth required for the frame
• The drainage strategy
• The structural build-up beneath the deck
• The relationship between internal and external finishes

By coordinating these details before construction, the finished threshold can appear simple and uninterrupted while accommodating the technical requirements beneath the surface.

Flush Threshold Doors with Timber Decking

A flush threshold can provide an effective connection between internal timber flooring and external decking.

When combined with slim sliding doors, the detail allows the floor finishes, glazing and surrounding landscape to work together as part of a continuous architectural composition.

The finished appearance may be minimal, but achieving it requires careful coordination between the glazing system, floor construction, decking and drainage.

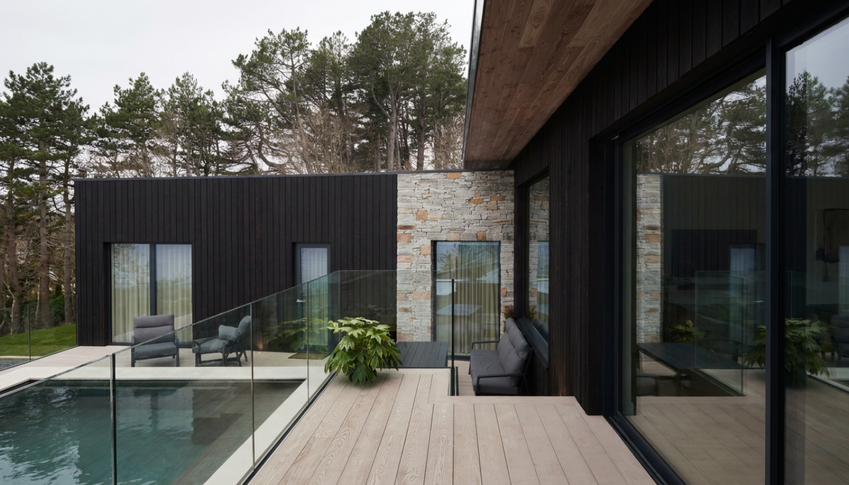

Portree Loch demonstrates how external decking can meet a flush sliding door threshold while maintaining a level transition and a strong connection with the surrounding landscape.

Posterns Court provides a further example of how minimal sliding doors can reduce the boundary between internal living spaces and the garden, helping to create a seamless transition between the architecture and its external environment.

For broader guidance on the design, performance and specification of level thresholds, read our complete guide to flush threshold doors.

To discuss flush threshold details, timber decking interfaces or the most appropriate minimal windows® sliding door system for your project, contact us today.
