Bank Barn

The glazing strategy at Bank Barn centred around two minimal windows® 4+ sliding door systems, both positioned within existing openings on the north elevation of the converted barn. Each system was designed as a two-track configuration with one fixed pane and one sliding pane, allowing the openings to provide access, daylight and long views while maintaining the quiet visual restraint required for a listed rural building.

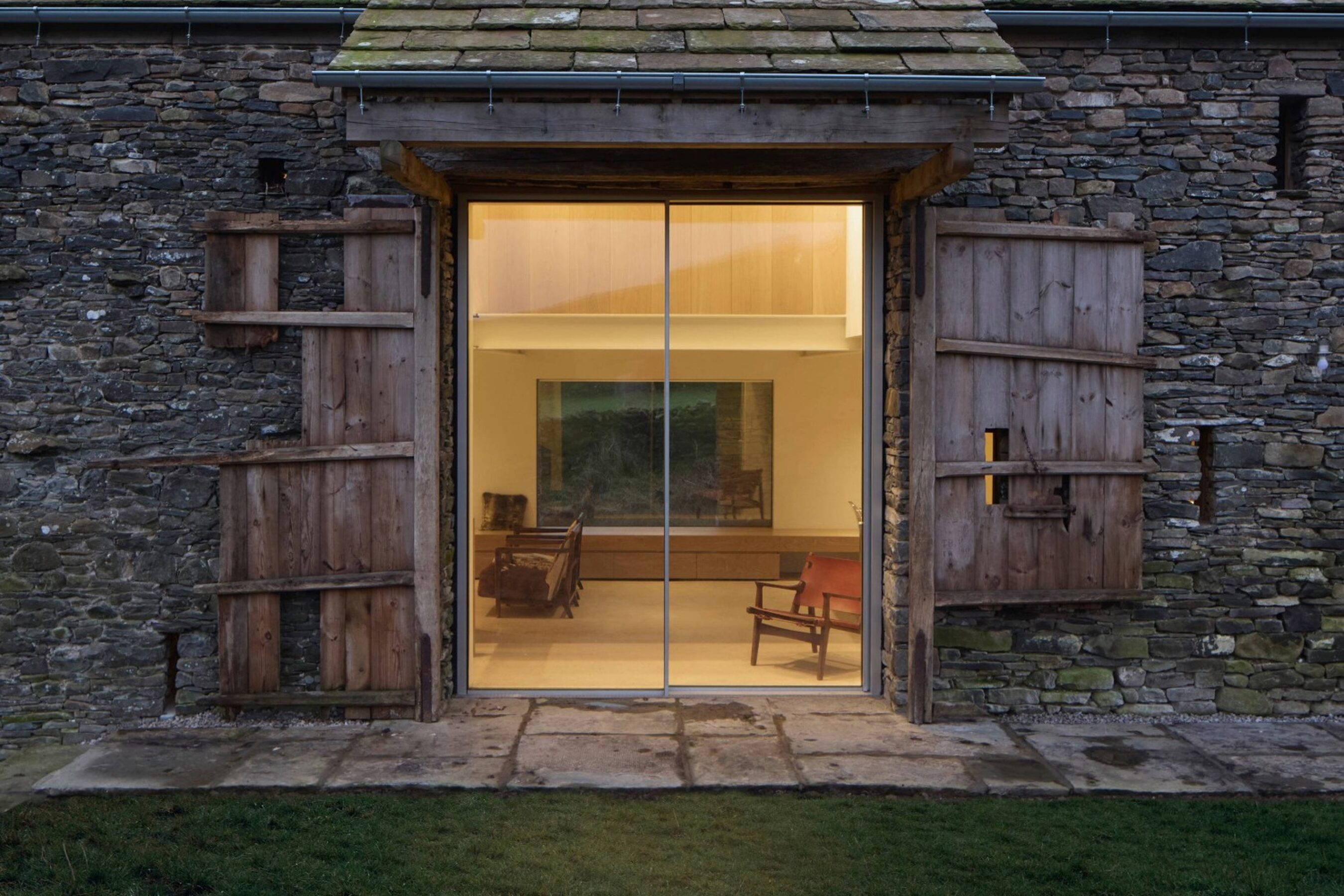

The largest sliding door system measures approximately 2.77 metres wide by over 3.3 metres high, creating a tall, slim framed opening that sits carefully within the historic masonry. A second smaller sliding system was also installed to support the wider architectural plan, reinforcing the relationship between the interior spaces and the surrounding landscape.

Together, the two sliding systems demonstrate how triple glazed sliding doors in Cumbria can be used within listed and heritage sensitive buildings where minimal intervention, performance and precision are all essential.

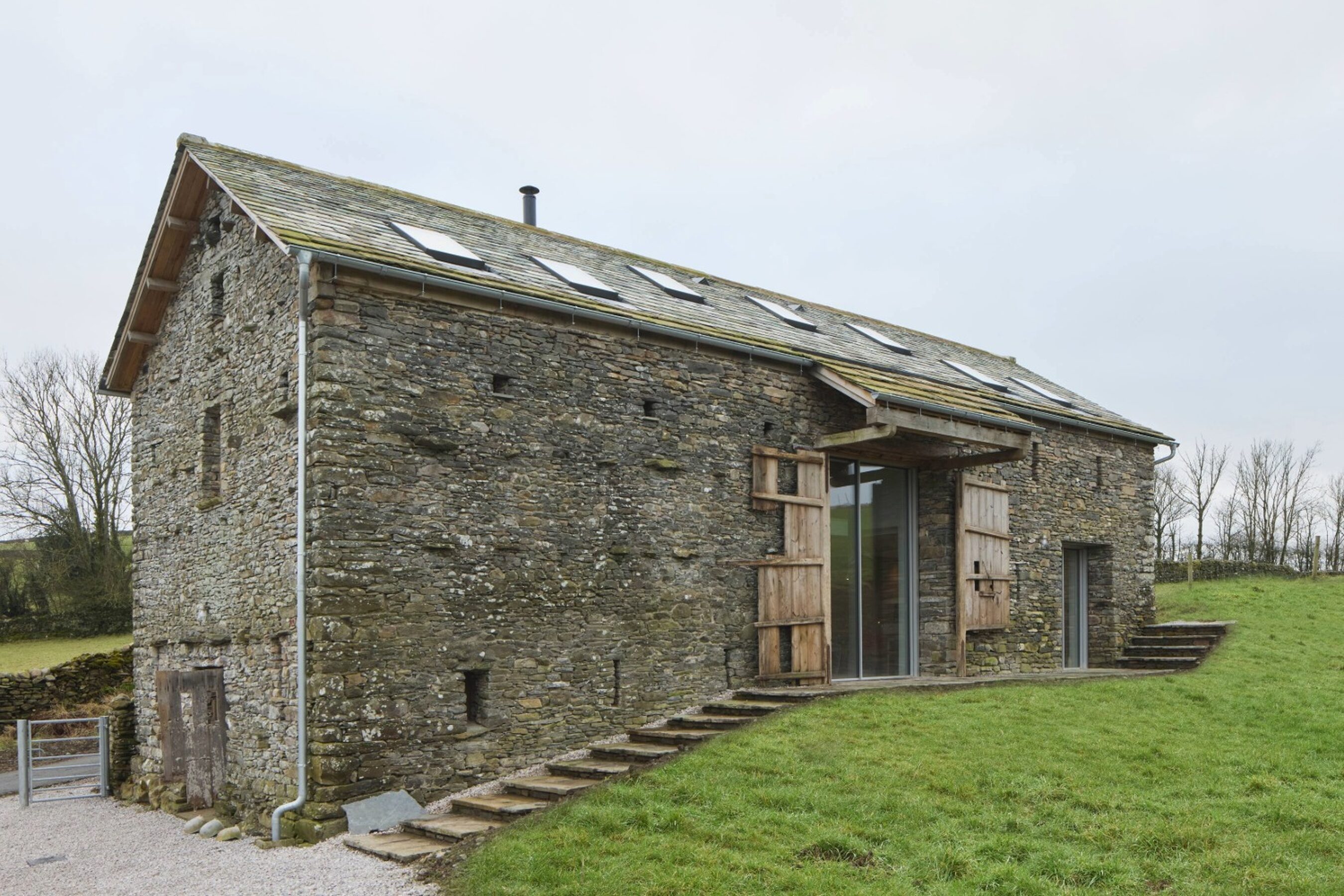

The design intent was to preserve the barn’s agricultural identity while creating a comfortable, light-filled home suited to contemporary living. The existing stone shell was treated as the primary architectural feature, with new interventions inserted carefully rather than imposed onto the building.

No new openings were introduced, meaning the glazing needed to work with the historic pattern of apertures already present in the barn. This approach allowed the exterior to remain legible as a traditional field barn while the interior was transformed through carefully positioned views, daylight and spatial connections.

For architects and private clients considering triple glazed sliding doors in Cumbria, Bank Barn shows how minimal framed glazing can support listed building conversions where design restraint is as important as technical performance.

The two minimal windows® 4+ systems were selected to provide the thermal performance of triple glazing while retaining the slim, minimal appearance required for the conversion. Each system uses a two-track arrangement with one sliding pane and one fixed pane, allowing the glazing to operate within the limits of the existing apertures.

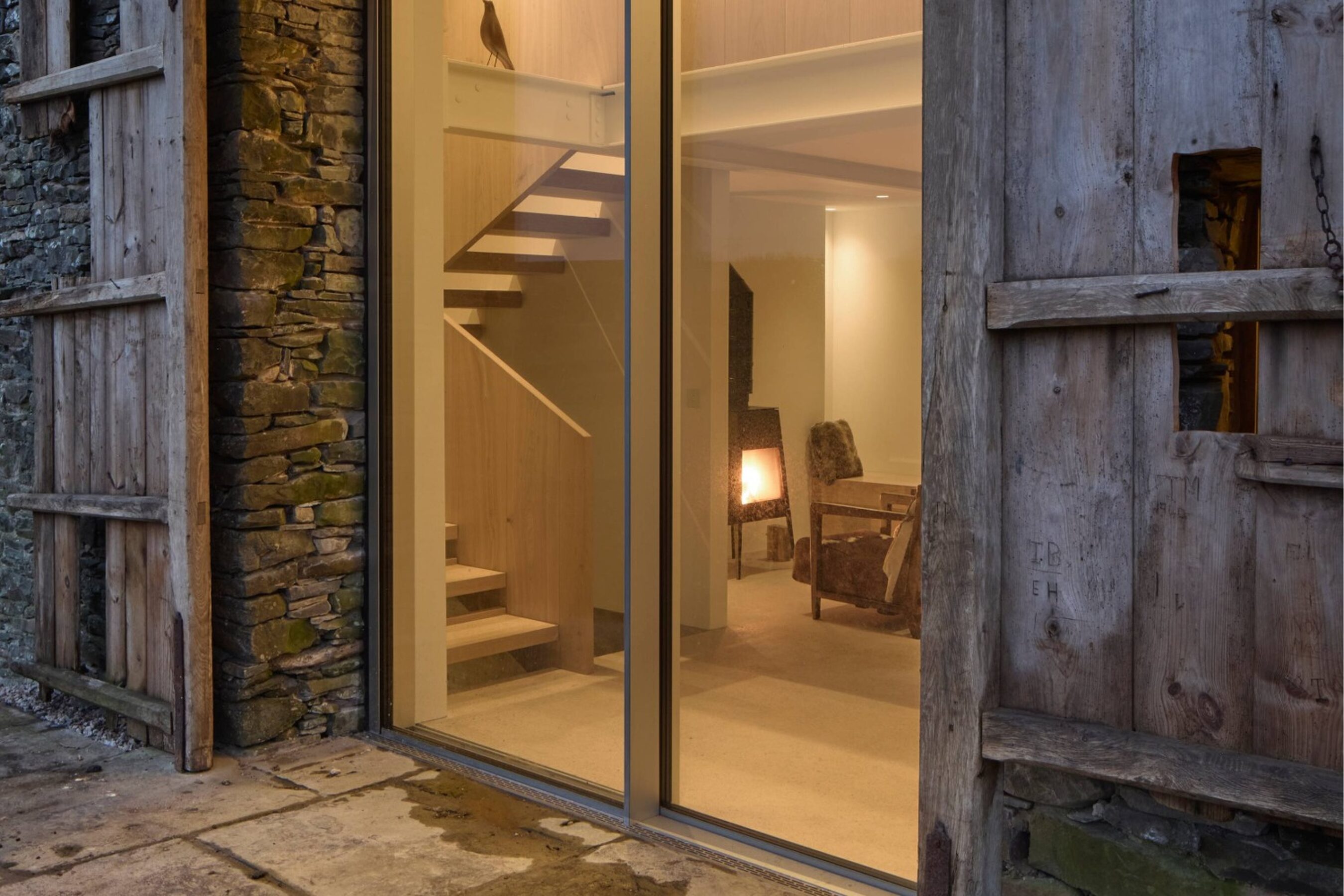

The largest glass pane weighs approximately 216kg, requiring accurate design coordination and careful handling during installation. The system’s 26mm vertical profile allows the triple glazed units to sit discreetly within the original stonework, reducing visual interruption and keeping the emphasis on the barn’s historic fabric.

A silver anodised frame finish was used to create a refined, durable appearance that remains visually quiet against the existing stone. This finish also gives consistency across the sliding systems while supporting the understated architectural language of the conversion.

The sliding door systems were specified with 52mm triple glazed units to support improved thermal efficiency within the converted barn. Clear toughened safety glass was used throughout, with heat soak testing applied to the largest sliding door system to significantly reduce the risk of spontaneous glass breakage.

The flush threshold base frame helps create a clean transition at the openings while an integrated slot drain supports water management. This was particularly important for a rural listed building where the glazing needed to offer modern usability without appearing visually heavy or over-engineered.

By combining triple glazing, slim profiles and discreet threshold detailing, the minimal windows® 4+ system helped improve comfort and performance while preserving the quiet, agricultural character of the barn.

Installation required careful planning due to the fragile nature of the existing masonry and the limited access available on site. The original brickwork and stonework were delicate, meaning the glazing had to be installed with a high level of control to avoid damage to the listed fabric.

Mechanical lifting equipment could not be used, so the glass units were moved and installed manually by an experienced team working within confined conditions. This was particularly demanding due to the scale and weight of the larger sliding door pane,

The installation approach ensured that the triple glazed sliding systems were positioned accurately within the existing openings, maintaining smooth operation, clean sightlines and the restrained finish required for a listed barn conversion.

The completed Bank Barn project demonstrates how triple glazed sliding doors in Cumbria can enhance a listed rural building without compromising its historic identity. The minimal windows® systems bring light, access and thermal performance into the barn while allowing the original stone structure to remain the dominant architectural feature.

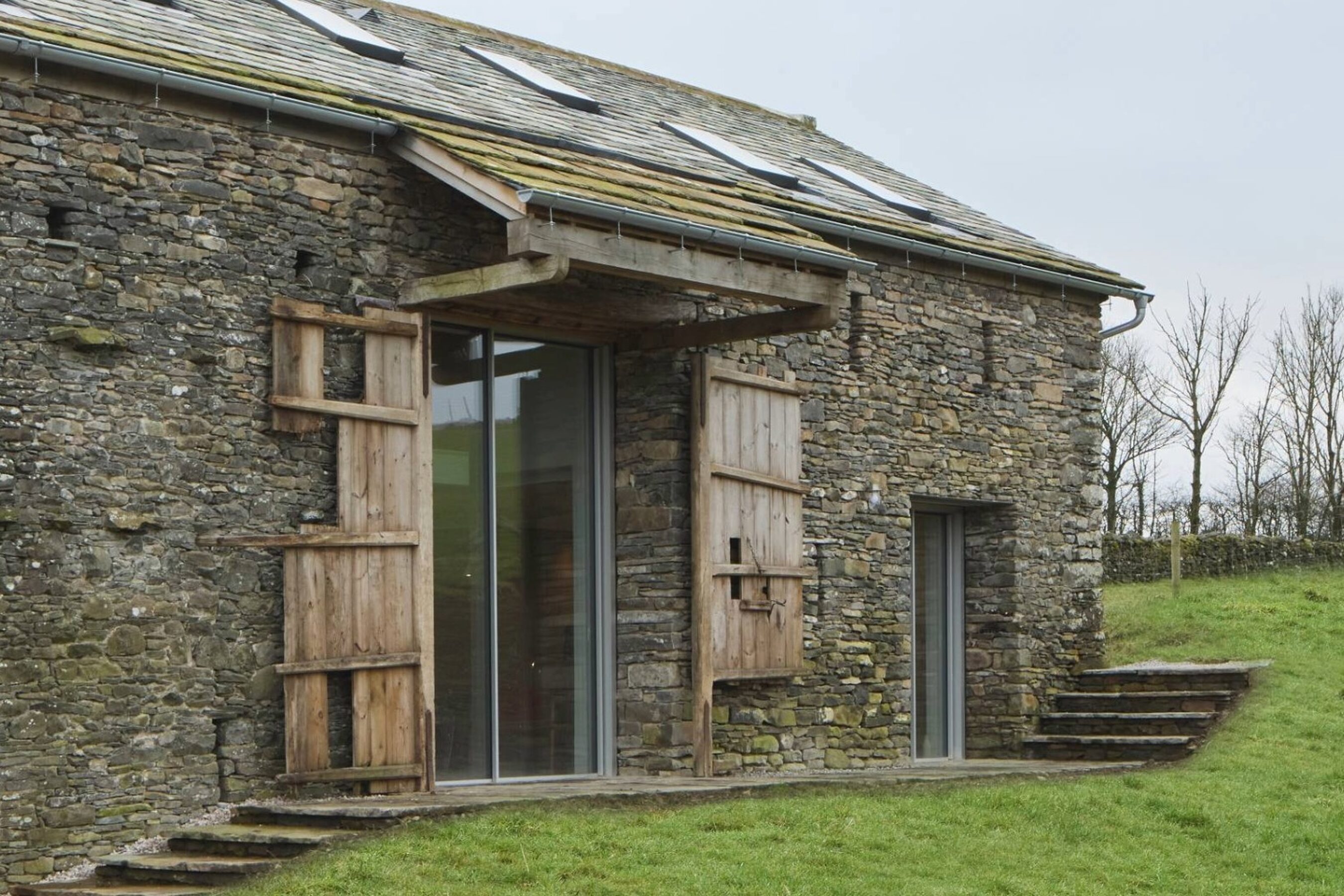

The north elevation now benefits from slim framed sliding openings that support contemporary living while respecting the building’s agricultural past. By working within the existing apertures and using discreet, high-performance glazing, the project provides a clear example of how minimal windows® can be used in heritage conversions where restraint, precision and long-term performance are essential.

For architects, developers and private clients working with listed barns or rural buildings, Bank Barn illustrates how premium sliding glazing can support adaptive reuse while preserving the character and material integrity of the original structure.

• System: minimal windows® 4+ sliding door systems
• Configuration: Two-track systems, each with 1 fixed pane and 1 sliding pane
• Largest system: Approx. 2770mm wide x 3325mm high
• Second system: Approx. 1750mm wide x 2175mm high
• Glass: 52mm triple glazed clear toughened safety glass
• Glass testing: Heat soak testing to the largest sliding door system
• Panel weight: Largest pane approx. 216kg
• Sightlines: 26mm minimal vertical profile
• Frame finish: Silver anodised
• Threshold: Flush threshold base frame
• Drainage: Integrated slot drain
• Locking: Multi-point slim Type 1 shoot bolt locking system
