Triple Glazed Sliding Doors in Worcestershire for a Grade II Listed Farmhouse

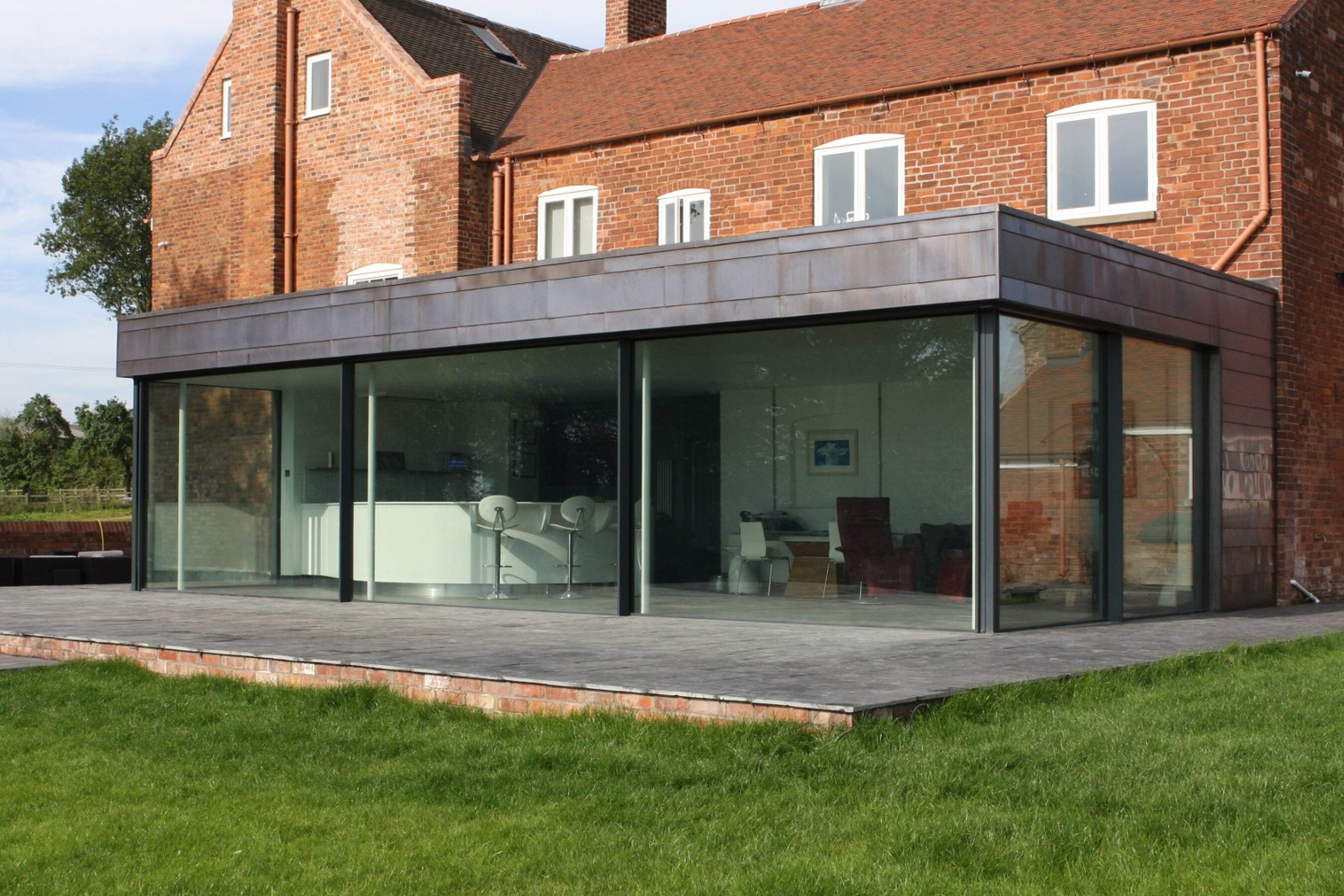

The glazing strategy at The Lea centres around a U-shaped glass wall extending across three sides of the new extension. Fixed and sliding minimal windows® systems were coordinated across the north-east, south-east and south-west elevations to create a consistent glass facade around the contemporary living space.

The largest section is an 11,150mm wide three track sliding door system comprising three sliding panels. This substantial opening is complemented by a 4,140mm wide two track system containing one fixed panel and one sliding panel. A further fixed minimal windows® panel, measuring 2,210mm wide, completes the three sided composition.

All three systems stand approximately 2,460mm high, creating a consistent horizontal line around the extension. Two slim 90° connections unite the glass walls, including an opening corner between the principal sliding systems.

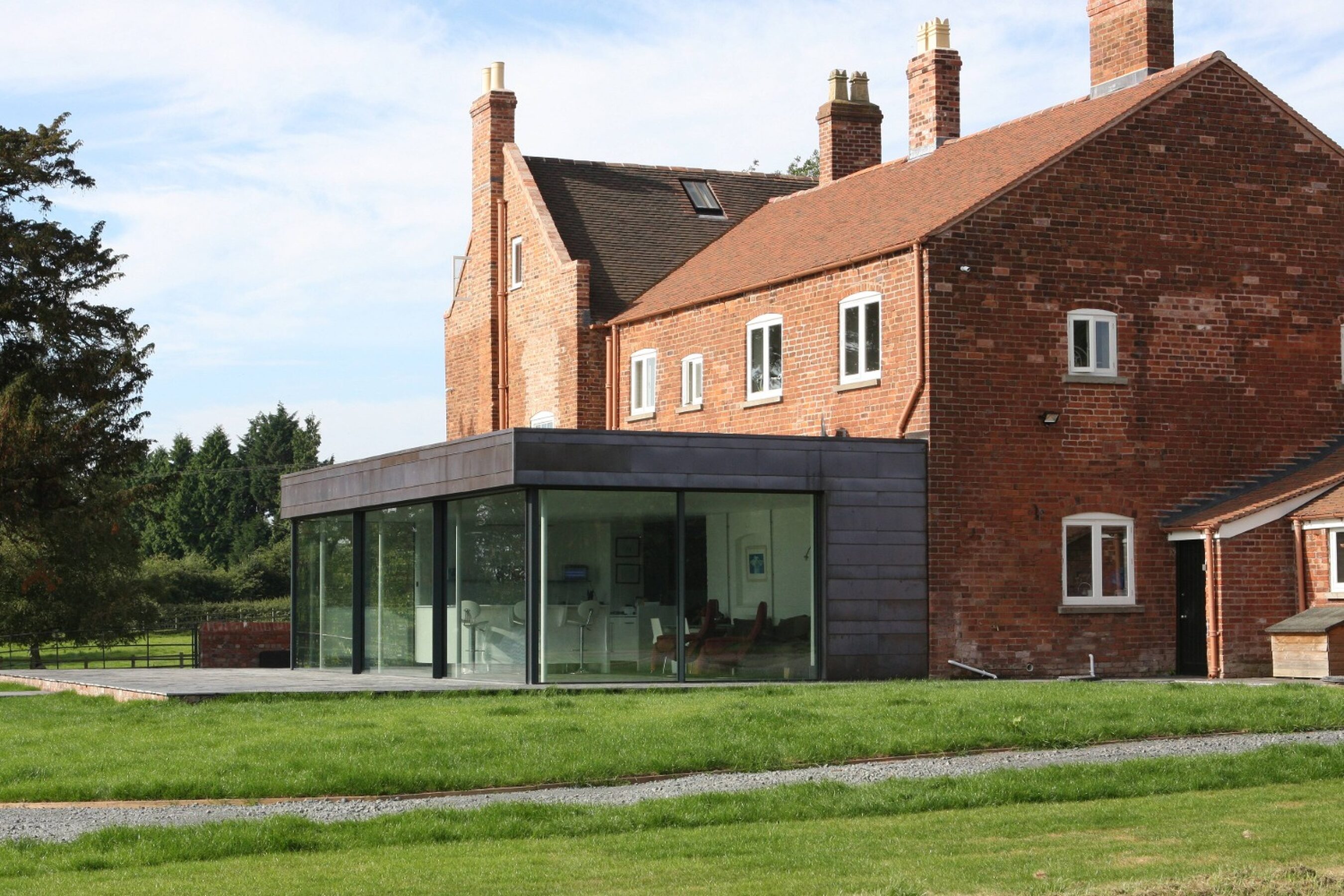

The design needed to introduce a clearly contemporary addition without diminishing the architectural character of the Grade II listed farmhouse. The original building is defined by traditional red brick, timber detailing and comparatively modest window openings, so the extension was conceived as a lighter and more transparent counterpoint.

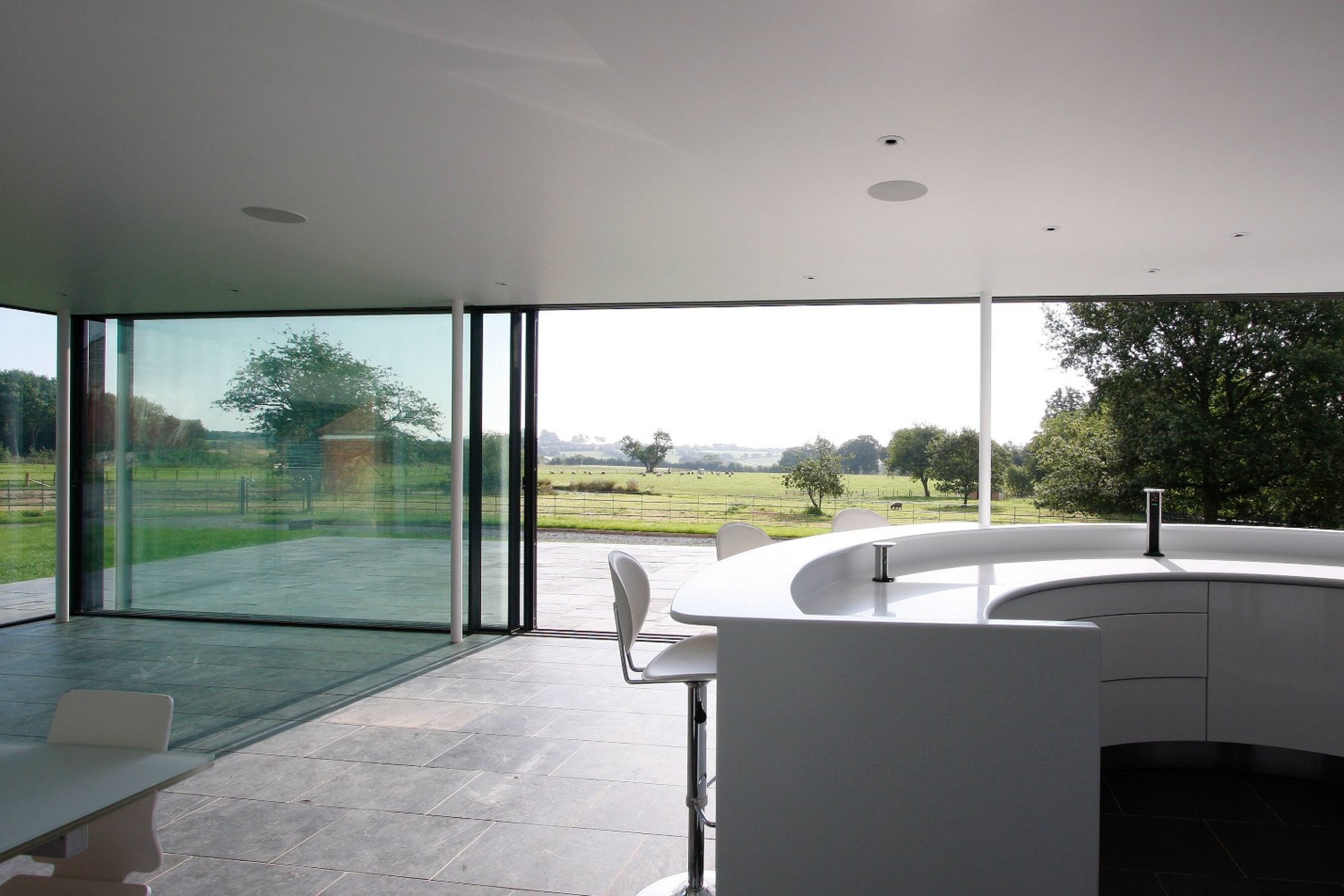

A flat, metal-clad roof sits above the U-shaped glass wall, allowing the extension to appear visually distinct from the historic farmhouse. The extensive glazing introduces natural light into the new living space while opening long views across the terrace and rural landscape.

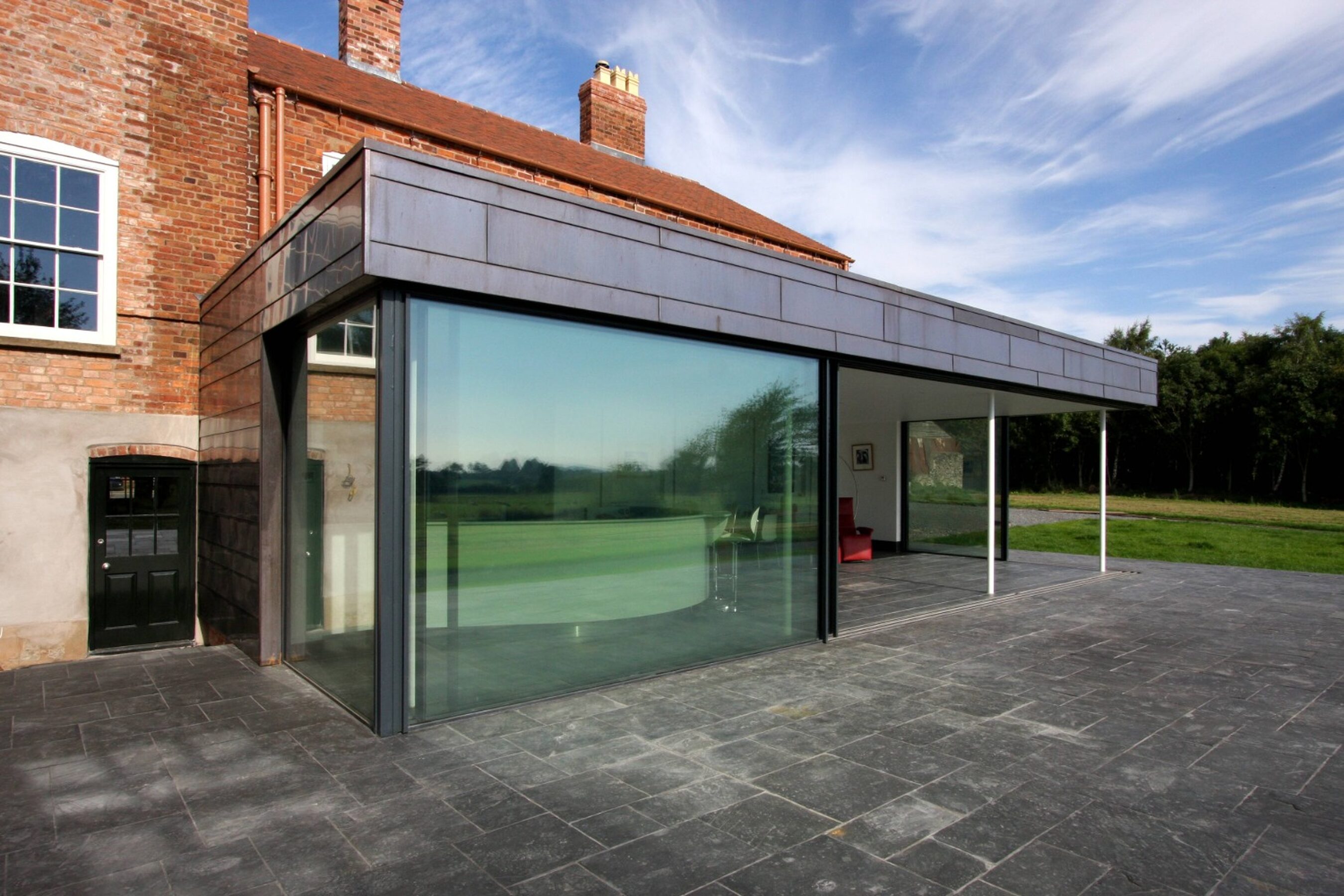

The triple glazed sliding doors were central to this approach. Large areas of glass reduce the visual separation between the interior and outside, while the flush thresholds support a continuous transition between the tiled internal floor and external terrace.

For architects, developers and private clients considering triple glazed sliding doors in Worcestershire, The Lea demonstrates how minimal framed glazing can form a contemporary addition to a listed rural property while keeping the original architecture clearly legible.

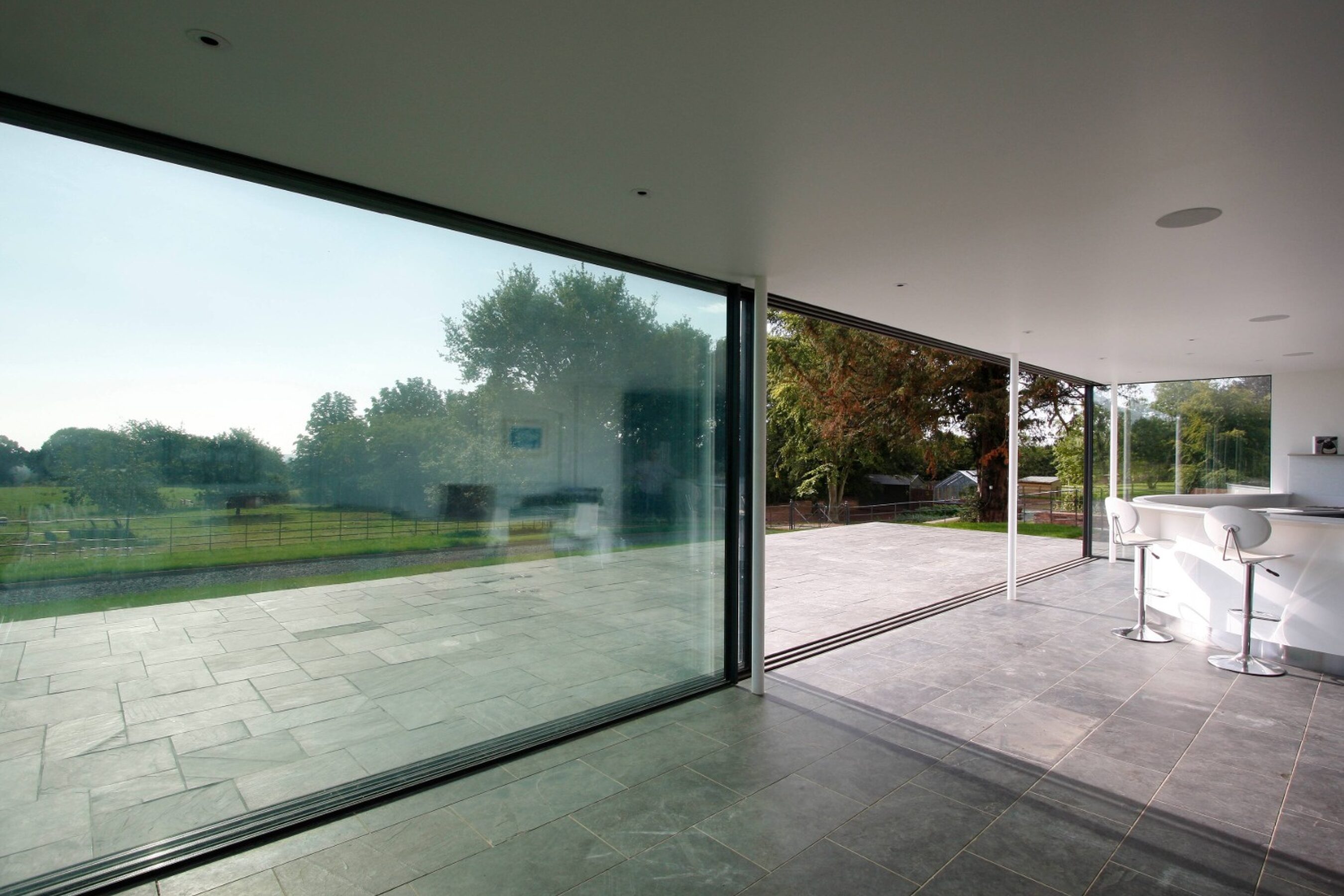

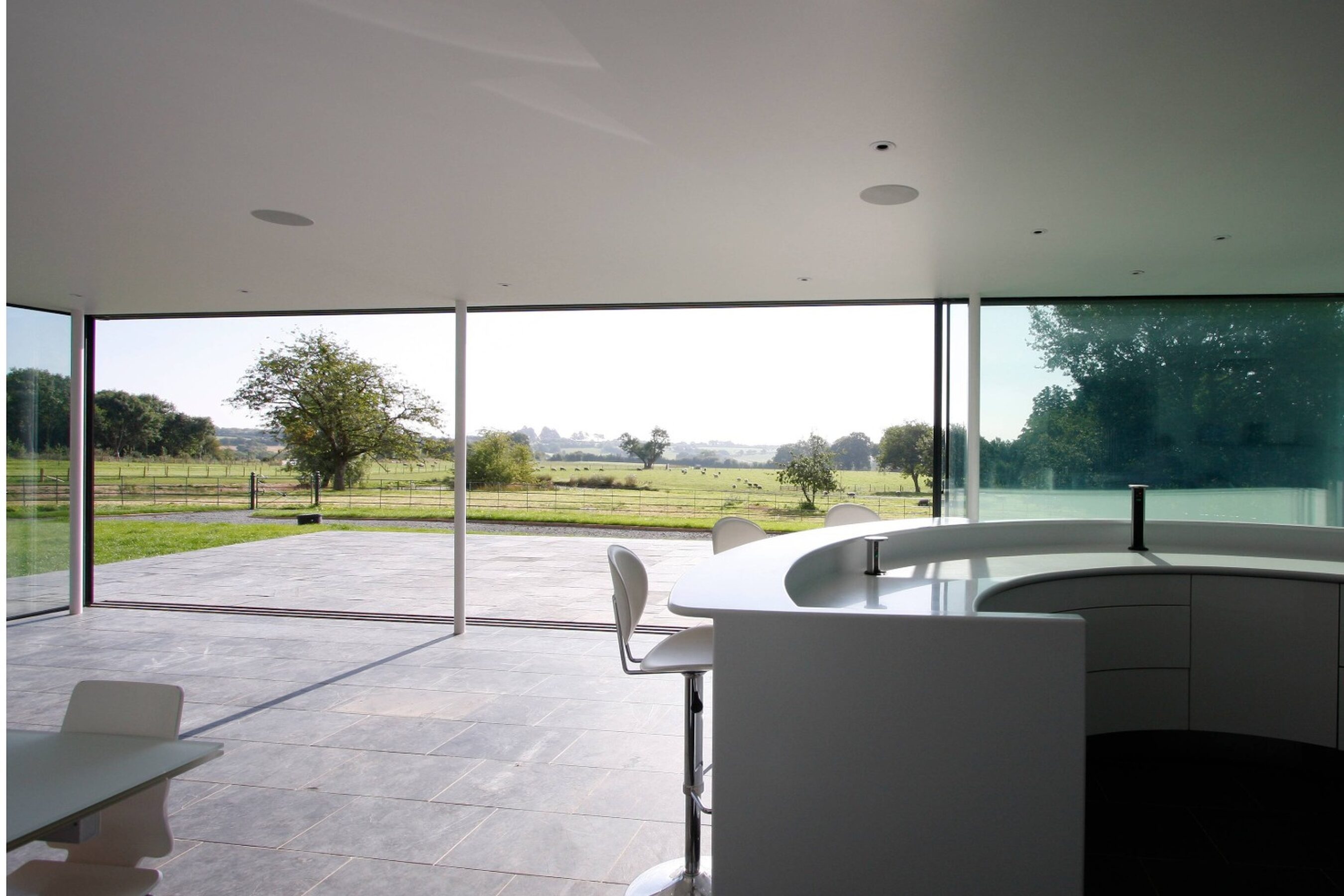

The south-east elevation contains the largest sliding installation, measuring 11,150mm wide by 2,460mm high. Its three-track configuration comprises three sliding panels, allowing the extensive glass wall to provide flexible opening arrangements and broad access between the living space and terrace

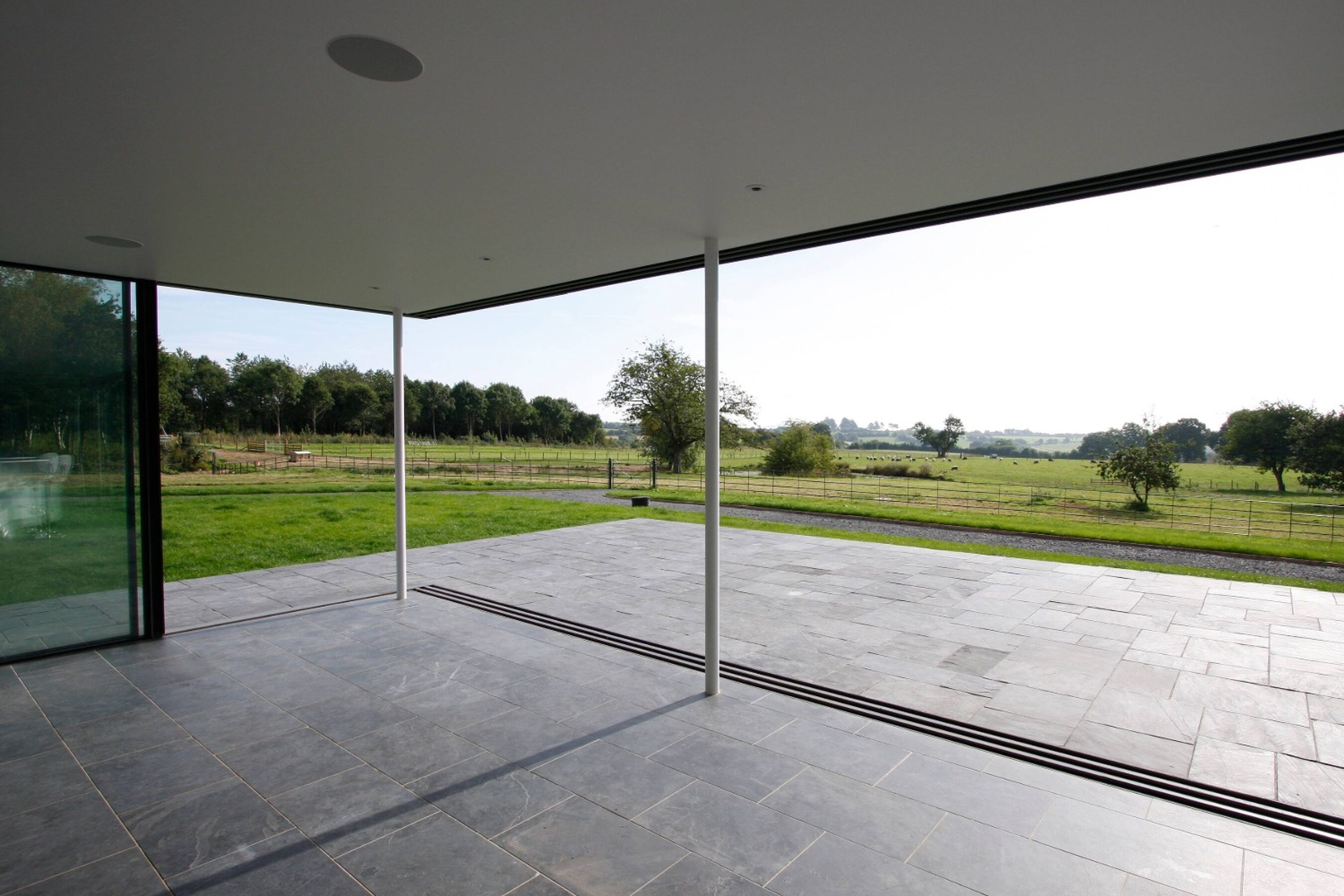

On the adjoining elevation, a two-track minimal windows® system measures 4,140mm wide by 2,460mm high and contains one fixed panel and one sliding panel. This system meets the larger sliding glass wall at a 90° opening corner. When the relevant panels are moved apart, the solid junction is removed to create an uninterrupted opening at the corner of the extension.

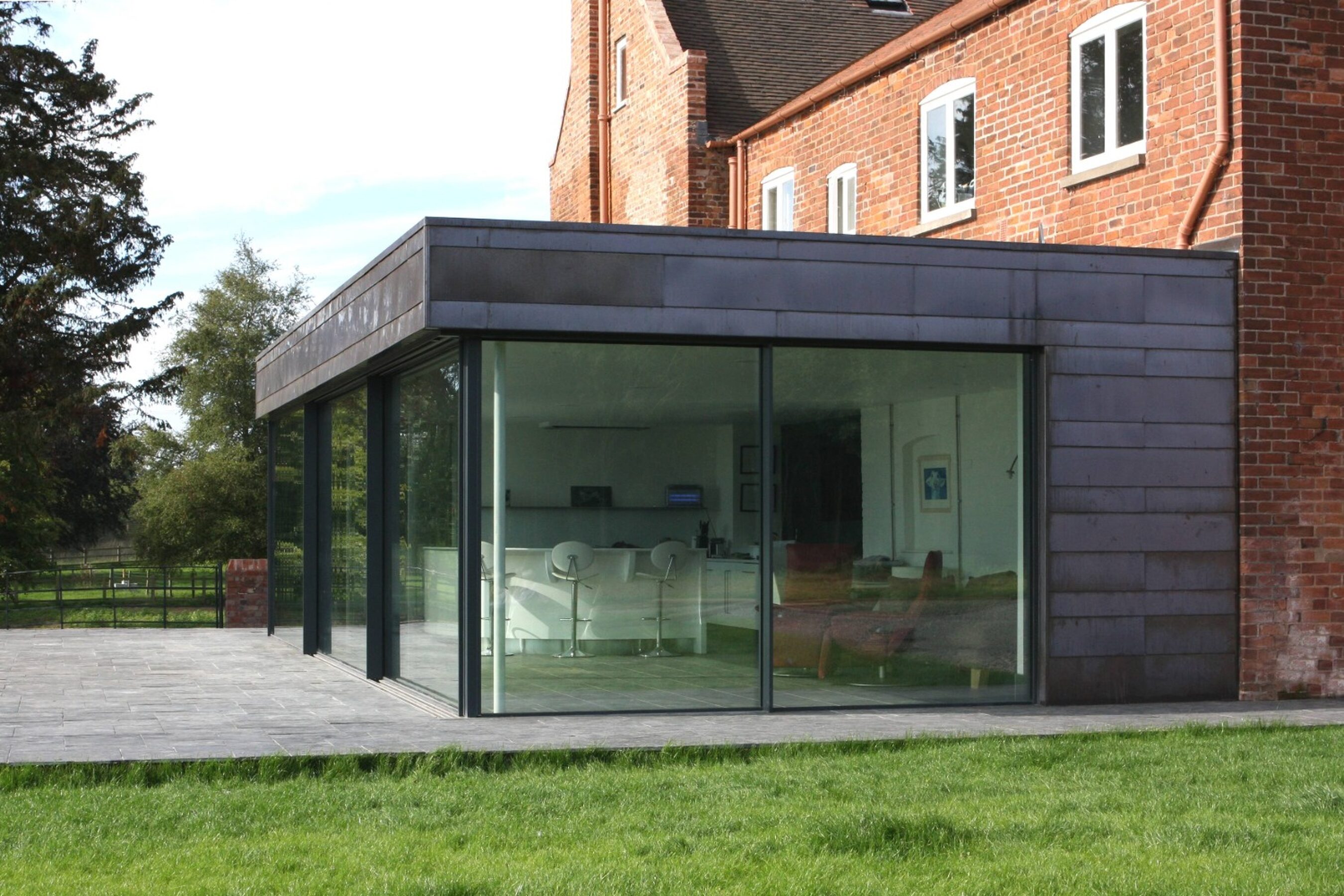

A fixed minimal windows® panel measuring 2,210mm wide by 2,460mm high forms the third section of the U-shaped glass façade. It meets the larger sliding system through a further 90° corner connection, maintaining visual continuity around all three sides of the extension.

The sliding doors were specified with triple glazed units to deliver enhanced thermal insulation within the highly glazed extension. Each unit incorporates three layers of 6mm toughened glass separated by two 15mm argon-filled cavities. This specification helps maintain internal comfort while allowing the architecture to benefit from extensive areas of transparent glass.

Thermally broken aluminium framing further supports the thermal performance of the facade. The frames are finished in RAL 7016, providing a dark and understated appearance that complements both the metal-clad extension and the traditional materials of the farmhouse.

Flush threshold detailing creates a level transition between the interior and terrace. Dark grey floor finishes continue across this junction, reinforcing the visual connection between the living space and surrounding landscape.

Creating a continuous glass wall across three elevations required accurate coordination between the fixed panels, sliding systems and two 90° corner connections.

Consistent frame heights were essential to maintaining a unified architectural line around the extension. The tracks and frames also needed to align with the internal and external floor finishes to achieve the intended flush threshold detail.

Particular precision was required at the opening corner, where the sliding systems meet. Careful alignment ensures the doors close accurately to form a secure junction while allowing the corner to open cleanly when the panels are moved apart.

The Lea demonstrates how triple glazed sliding doors in Worcestershire can transform a Grade II listed farmhouse by introducing natural light, expansive rural views and a closer connection between the interior and outside.

The U-shaped glass wall gives the contemporary extension a light and transparent character, establishing a deliberate contrast with the traditional red brick farmhouse. The three track sliding system provides a substantial opening onto the terrace, while the opening corner further reduces the physical boundary between the living space and landscape.

For architects, developers and private clients planning a listed building extension or rural renovation, The Lea provides a clear example of how minimal windows® systems can combine triple glazing, large sliding configurations and slim corner detailing within a heritage-sensitive design.

• System: minimal windows® triple glazed fixed and sliding systems
• Arrangement: Three-sided U-shaped glass wall
• Largest system: Approx. 11,150mm wide x 2,460mm high. Three-track system with 3 sliding panels
• Two track system: Approx. 4,140mm wide x 2,460mm high. 1 fixed panel and 1 sliding panel
• Corner details: 2 slim 90° corner connections
• Opening detail: 1 opening corner between the sliding systems
• Glass: Triple glazed toughened safety glass
• Glass construction: 3 layers of 6mm toughened glass. 2 x 15mm argon-filled cavities
• Frame: Thermally broken aluminium finished in RAL 7016 with a flush threshold
